Titanium and Tungsten is the most representative of high performance metals in modern industry, widely used in aerospace, semiconductor, medical, energy, and other areas of the high-end and extreme conditions.

Although both belong to the high performance materials, such as density, high temperature resistance, strength, in the way nature difference, according to their own project requirements, accurate choice more fit, more cost-effective material, become the core of industrial procurement pain points.

What is Titanium and Tungsten

Titanium its core advantage is focused on the "light, strong, corrosion resistance," the three dimension, become a high-end manufacturing lightweight design is one of the preferred material.

Tungsten and tungsten gold, is a kind of extreme performance of high density metal, its core advantage is focused on the "high temperature stability, high strength, high hardness, is the core of the extreme high temperature and high pressure conditions fit material

Key Differences Between Titanium and Tungsten

Titanium and tungsten is belong to high performance industrial metals, but significant difference for the core features, application logic very different scenarios and purchasing.

Density & Weight

One of the core advantages of titanium is lightweight. In weight-sensitive scenarios, the use of titanium can significantly reduce the overall weight of the product and improve equipment efficiency.

Tungsten is a typical high-density metal. Its high density makes it highly suitable for scenarios that require counterweight, balancing or radiation protection.

Strength & Hardness

The core advantage of titanium is specific strength. On the premise of lightweight, titanium (especially Ti 6 al 4 v alloy) structural strength comparable with high strength steel, even more than some steel.

Strength and hardness of the tungsten is far higher than that of titanium, tungsten but relatively poor toughness, easy to brittle fracture under normal temperature, therefore more suitable for under high pressure, high temperature, wear of bearing parts.

Melting Point & Heat Resistance

Belong to high temperature adaptation of titanium material, can be in - 253 ° C to 500 ° C environment stable work, after more than 500 ° C, obviously the decrease of the strength and corrosion resistance will be weakened.

Tungsten has a melting point as high as 3422°C and can operate stably for a long time in extreme high-temperature environments above 1000°C.

Corrosion Resistance

The corrosion resistance of titanium is one of its core advantage, can effectively resist water, strong acid, strong alkali, chlorine and other chemical media, difficult to oxidation, corrosion or embrittlement.

Tungsten corrosion resistance is better also, but the main adaptation vacuum or controlled environment (e.g., inert gas environment), in the air, when the temperature more than 400 ° C, the tungsten start oxide and tungsten oxide formation, leading to material embrittlement, performance degradation.

Machinability & Fabrication

Tungsten also has good corrosion resistance, but it is mainly suitable for vacuum or controlled environments (such as inert gas environments). In air, when the temperature exceeds 400°C, tungsten will begin to oxidize and form tungsten oxide, leading to material embrittlement and performance degradation.

Tungsten corrosion resistance is better also, but the main adaptation vacuum or controlled environment (e.g., inert gas environment), in the air, when the temperature more than 400 ° C, the tungsten start oxide and tungsten oxide formation, leading to material embrittlement, performance degradation.

Cost & Availability

Titanium is a mature industry chain, has the stable global supply system and extensive application of processing technology. Therefore, the relatively high cost performance. Therefore, its cost performance is relatively high.

The raw material reserves of tungsten are relatively scarce, and the processing is difficult and complex, so the raw material and processing cost are much higher than titanium, and the overall procurement cost is high.

Application Comparison

The application scenario of titanium and tungsten has a clear boundary, and the choice of which material depends on the project's working condition demand, weight limit, cost budget and other factors.

When to Choose Titanium

Titanium at the core of the adapter scenario focuses on "lightweight, strong corrosion, high temperature, when the project meet the demand of the following any, preferred titanium:

1.  Is sensitive to the weight of structures, such as aerospace airframe, the need to ensure the structural strength at the same time, reduce the overall weight, improve equipment efficiency;
2. Strong corrosive environment, such as chemical reaction kettle, need to resist chemical medium or seawater erosion, prolong the service life of equipment;
3.  Medical and biocompatibility requirements: for example, artificial joints should have good biocompatibility, do not cause human rejection, and can resist the corrosion of human body fluids;
4.  Aerospace and high-end equipment manufacturing, such as low temperature in aircraft engine parts, aspires to lightweight, high strength and reliability.

When to Choose Tungsten

The core adaptation scenario of tungsten focuses on "extreme high temperature, high density and high hardness". When the project meets any of the following requirements, tungsten is preferred:

1. Ultra-high temperature working environment: such as high temperature furnace heating wire, need to work stably in the extreme high temperature environment above 1000°C;
2. High density or high hardness requirements: such as precision equipment counterweight block, shall be realized in small volume weight, balance or protective effect;
3. The semiconductor, vacuum furnace, heat system: such as the sputtering target material in semiconductor chip manufacturing, tube filament, adapted to vacuum and high temperature environment, guarantee the equipment accuracy and stability;
4. Energy, military and protection fields: such as nuclear reactor control rods, need to have excellent high temperature stability, high density and reliability.

What are the Application of Titanium and Tungsten

Aerospace

Preferred titanium: for the fuselage structure, wing, reduce energy consumption of the flight; Tungsten material is used only for extreme high temperature area, spacecraft engine counterweight parts and other special scenario.

Electronics & Semiconductor

Preferred tungsten material: used in semiconductor sputtering target material, tube filament, etc., ensure the accuracy of electronic devices and chips.

Energy & Power

Titanium: lightweight structure used in wind power equipment, solar equipment, hydropower, nuclear power in the corrosion resistant pipe and fittings; Tungsten material: high temperature parts used in nuclear reactors, the control rods, high temperature heating of power generation equipment components.

Tungsten: used for high temperature components of nuclear reactors, control rods, heating components of high temperature power generation equipment.

Chemical Industry

Preferred titanium: used in the reaction kettle, pipelines and other corrosive medium erosion, prolong the service life of chemical equipment;

Tungsten material is used only for the small parts of extreme high temperature in chemical equipment, wear-resisting.

Medical Devices

Preferred titanium: used for medical implants, such as the artificial joint with good biocompatibility and corrosion resistance; Such as pieces of tungsten material for medical radiation protection, relying on its high density radiation protection effect.

Titanium and Tungsten Products from a China Manufacturer

As the global industrial transfer to China, China has become the core of titanium and tungsten products supply base.Combat as China's leading titanium and tungsten manufacturers, with years of industry experience and technology accumulation, for the global customers with high quality and customized titanium tungsten products and one-stop solution.

Combat’s Product Capabilities

COMBAT can provide a full range of titanium and tungsten products, covering a variety of forms, meet the demand of different industries, different conditions of purchase:

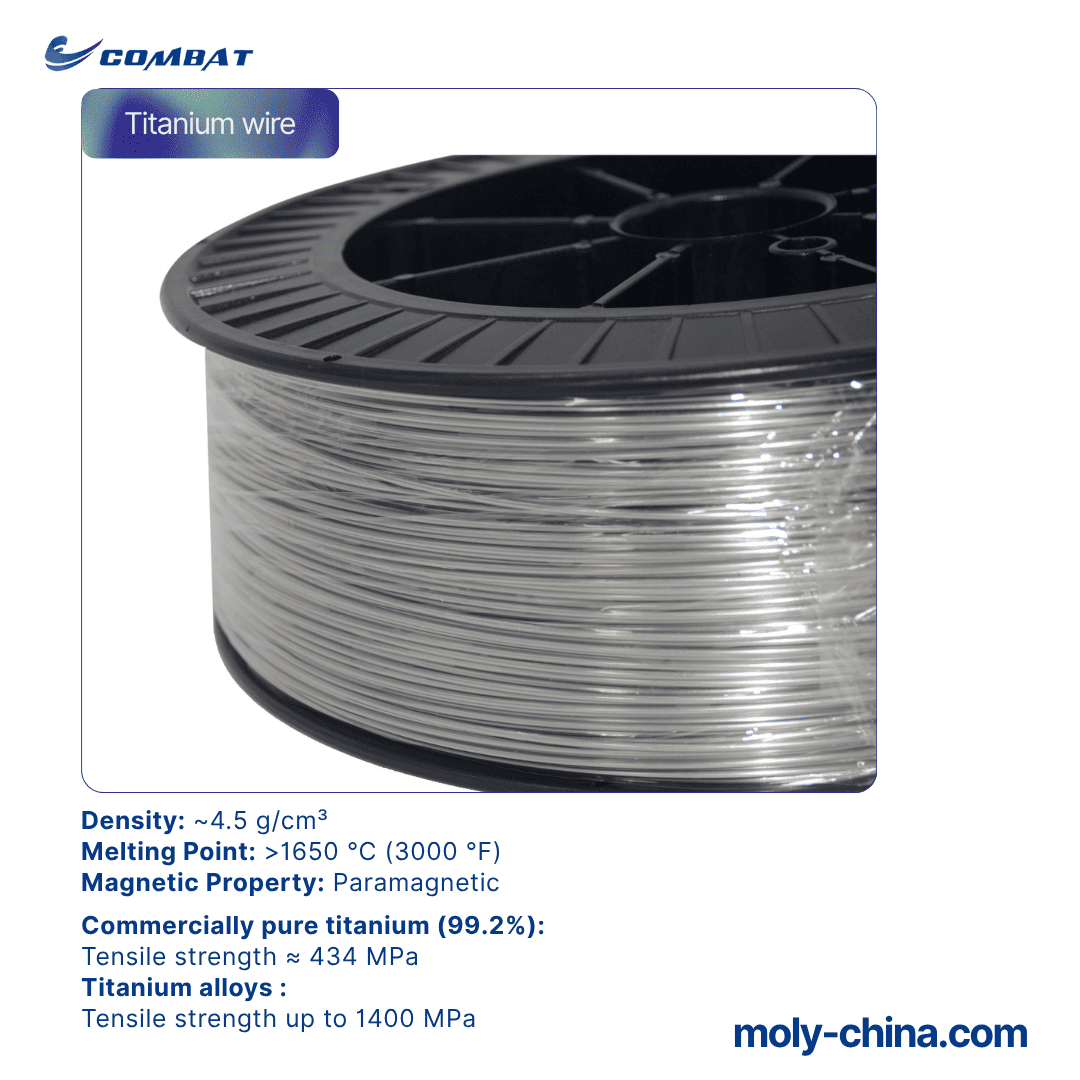

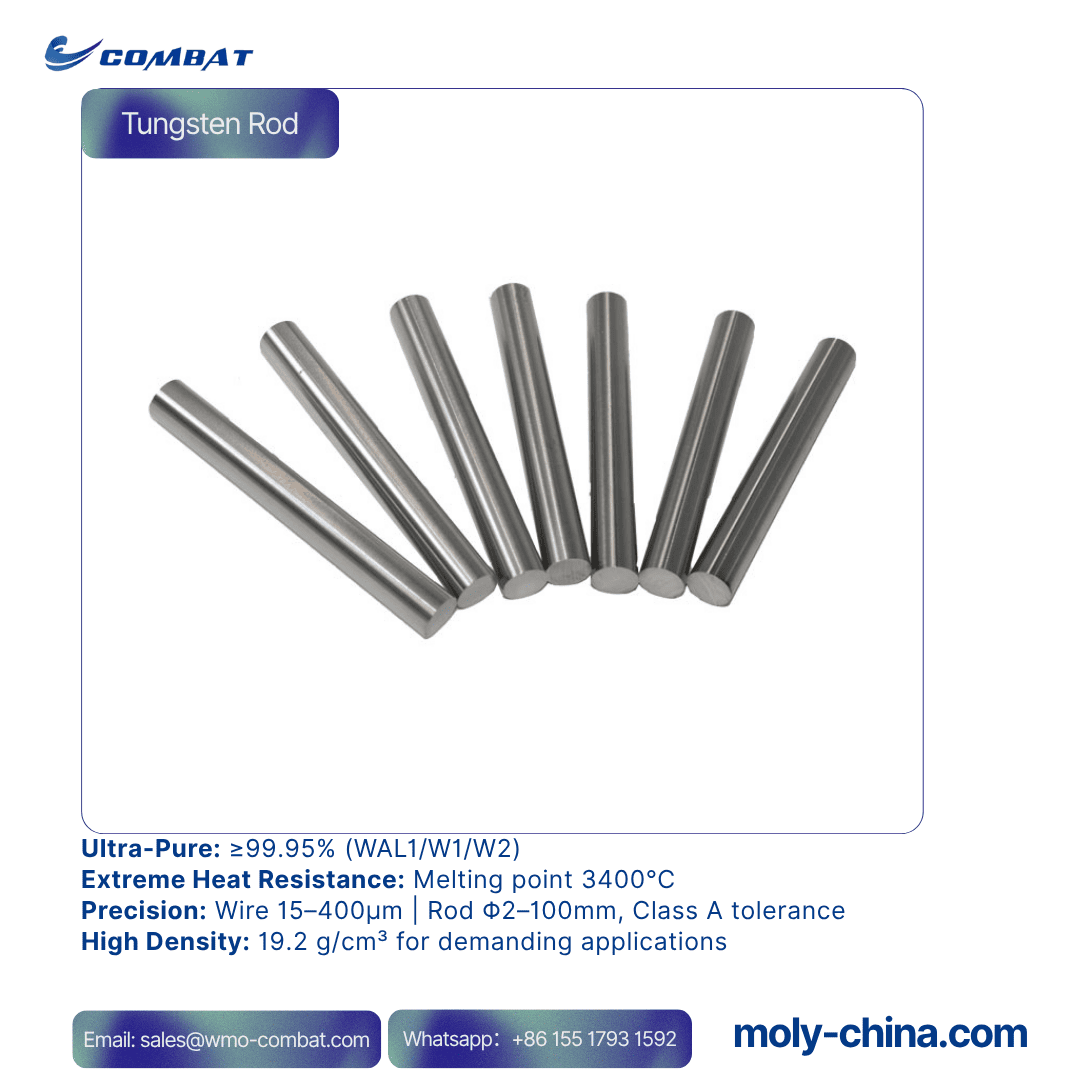

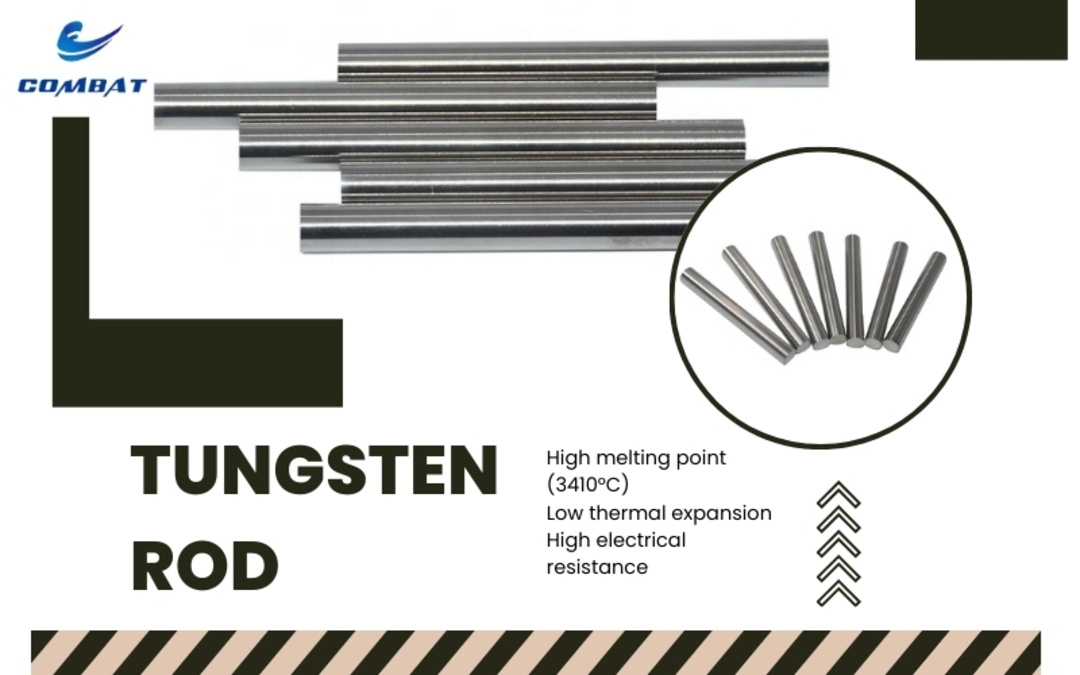

Titanium/Tungsten Rod, Sheet/Plate, Wire, Tube, Machined Parts & OEM Components, We can provide customized size, specification and precision according to customer's requirements.

Manufacturing Advantages

Strong customization ability: according to the customer's project needs, customized titanium tungsten products of different sizes, specifications, performance, suitable for complex working conditions and personalized application scenarios.

Strict tolerance and quality control: the use of advanced production equipment and testing instruments, establish a perfect quality control system, strict control of product tolerance, strength, hardness, corrosion resistance and other indicators.

Support OEM/ODM projects: Have rich experience in OEM/ODM services, and can cooperate with customers to complete the whole process of product design, development, production and delivery.

How to Choose the Right Material for Your Project

For industrial buyers, the core of choosing titanium or tungsten is to "match working conditions, control costs and ensure stability", without blindly pursuing "high performance", the key is to choose the most suitable material for their own project needs.

Core assessment dimension

Comprehensive assessment before the purchase the following five core dimensions, precise matching material properties and requirements of the project:

Working temperature: define the long-term working temperature of the project, titanium material is preferred for medium and high temperature (≤500°C), and tungsten material is preferred for extreme high temperature (≥1000°C);

Mechanical load: evaluate the force of components, titanium material is preferred for structural load bearing and lightweight, and tungsten material is preferred for high hardness, wear resistance and weight bearing;

Weight limit: if the project is sensitive to weight (such as aerospace, high-end equipment), titanium is preferred; if weight adjustment or protection is required, tungsten materials should be selected as the first choice.

Using the environment: to assess whether there is corrosion, vacuum, humidity, etc., strong corrosive environment priority choose titanium, vacuum/controlled environment optional tungsten material;

Project Budget: Considering the procurement cost and long-term usage cost, titanium materials should be given priority for bulk purchases and cost-sensitive projects. For special working conditions and projects with extremely high performance requirements, tungsten materials can be selected.

Conclusion

Titanium and tungsten as a high-performance metal in the field of modern industry, the core difference is not in a "quality", but "application logic". For industrial buyers, material selection is the core of "matching demand, combined with the project working temperature, mechanical load, weight limit, use environment and budget, titanium or tungsten material, rational choice without blind pursuit of high performance.

At the same time, choose an experienced, professional and reliable Chinese titanium tungsten manufacturers (such as COMBAT), can not only guarantee the product quality and stable delivery time, and can obtain the professional technical support and a one-stop solution, greatly reduce procurement risk and total purchase cost.
