In the EDM industry, there is a huge cognitive difference in the use of equipment in different regions, which also directly determines the production cost, processing accuracy and productivity of the processing plant. At present, 98% of the wire cutting equipment in Europe and the United States market use brass/copper wire as electrode wire, while in the Asian market, more than 60% of the wire cutting equipment for sale use reciprocating molybdenum wire fast-wire process, with high stability, reusable, low-cost core advantages, has quickly become the mainstream choice in the field of precision machining.

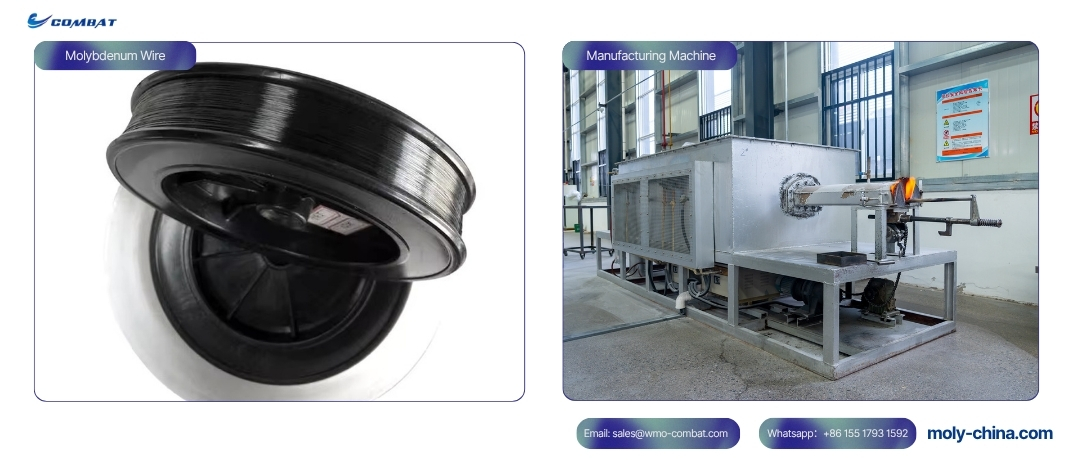

What is Molybdenum Wire for EDM?

Molybdenum wire is a refractory metal molybdenum (element symbol Mo, atomic number 42) as the raw material, through purification, multi-channel drawing process refined from the ultra-fine metal filament, is the core electrode material for EDM Fast cutting wire. The industry mainstream EDM special molybdenum wire purity up to 99.95% or more, specifications covering 0.05mm-0.30mm, can be adapted to micro-finishing, standard cutting, thick material roughing and other needs of the scene.

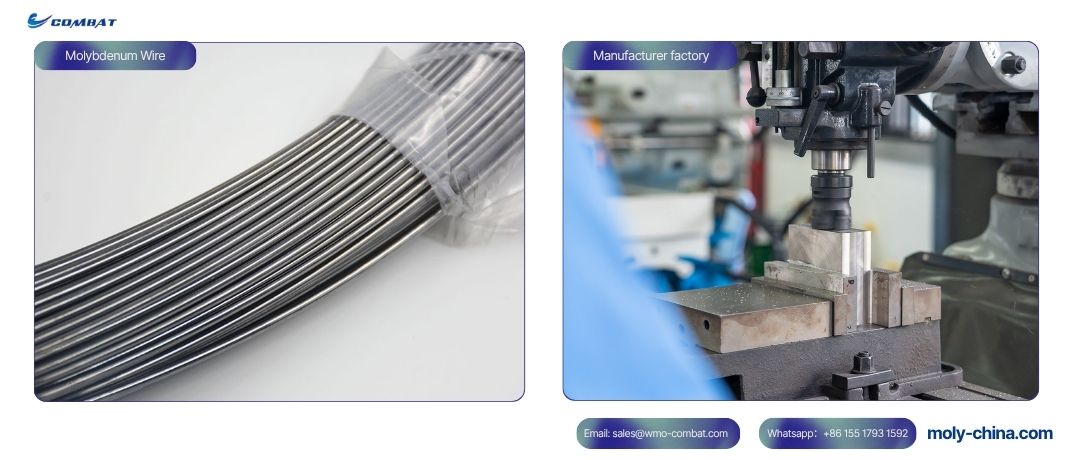

Characteristics of Molybdenum Wire

Different from ordinary metal wires, the physical and chemical properties of molybdenum wires are perfectly suited to the harsh working conditions of high-speed, high-temperature, high-tension and continuous processing of EDM, and the core advantages are as follows:

Ultra-high melting point: the molybdenum wire melting point is as high as 2620℃, much higher than the instantaneous high temperature generated by electric spark discharge, which will not cause melting and rapid burnout problems commonly found in brass wires, and can maintain the stability of the wire diameter for a long period of time.

Ultra-high tensile strength: tensile strength up to 900-1724MPa, far better than conventional brass wire, high tension cutting without stretching, no sagging, from the root to reduce cutting vibration and deviation.

Low coefficient of thermal expansion: it is not easy to deform, sag and warp under high temperature processing environment, and it can maintain high dimensional consistency even after long time continuous cutting.

Stable electrical and thermal conductivity: balanced electrical and thermal conductivity, can produce uniform and stable spark discharge; at the same time, wear-resistant, resistant to media corrosion, suitable for long-term high-intensity processing conditions.

At present, the mainstream industry is divided into two categories: 99.95% high purity molybdenum wire, is a Fast cutting wire EDM general purpose models. Lanthanum, zirconium, titanium doped alloy molybdenum wire, high temperature creep resistance is stronger, suitable for ultra-long time, ultra-high load extreme processing scenarios.

Requirements for electrode wires for EDM

As the core process of mold manufacturing and precision hardware processing, the core production goal of fast cutting Wire EDM is not only to complete the workpiece cutting, but also to achieve a balance of high accuracy, high speed, high stability and low cost of mass production.

Stable and Consistent Conductivity

Quality EDM electrode wires need to have a balanced and stable conductivity, able to continuously output a uniform pulse spark, and maintain a stable material etching efficiency throughout the process. If the conductivity of the electrode wire fluctuates greatly, problems such as uneven spark strength, localized fire breaks, and intermittent discharges will occur.

Outstanding fracture resistance

Fast-wire walking equipment, wire walking speed is extremely fast, the electrode wire is always in high-frequency reciprocating motion, continuous high tension pulling working condition, the mechanical load is very great. This requires special electrode wire must have strong structural stability and fatigue resistance. Substandard quality electrode wire is prone to violent vibration, wire jitter, local stress concentration fracture and other problems in high-speed operation.

Excellent high-temperature thermal stability

The instantaneous temperature of the high-frequency spark discharge of the Fast cutting wire is extremely high, and each pulse discharge will produce high-temperature impact and trace ablation on the surface of the electrode wire. During long-term continuous processing, the accumulated high temperature loss will continue to erode the electrode wire structure.

Ordinary electrode wires have poor high temperature resistance, and under long-term high temperature working conditions, there will be problems such as surface oxidation and ablation, continuous thinning of the wire diameter, and localized fusion breakage.

High reusability and low cost

Traditional brass wire and other disposable electrode consumables will be scrapped after a single cutting due to ablation and deformation, consuming a great deal of consumables, and the long-term procurement cost remains high. At the same time, frequent replacement of electrode wires will generate a large amount of downtime costs, which seriously lowers production efficiency. High-quality high-end EDM electrode wire must have the core characteristics of low loss and reusability.

Ultra-high dimensional uniformity

Industrial-grade EDM special electrode wire, need to do the wire diameter tolerance is very small, the whole straight, uniform structure, can completely avoid the wire running deviation, to ensure that the accuracy of each cut is uniform, to meet the precision molds, high-end parts of the stringent processing standards.

Key Reasons Why Choose Molybdenum Wire for EDM Wire

Extreme thermal stability

Fast cutting wire EDM relies on high-frequency electric spark instantaneous discharge to etch the metal, the processing area instantaneous temperature is extremely high, which is also the core cause of the traditional brass wire processing failures. Conventional brass wire melting point of only 900 ℃ or so, can not withstand high-frequency high-temperature impact for a long time. In the high-speed, high-load cutting conditions, brass wire is very prone to surface corrosion and oxidation, wire diameter continues to become thin, local fusion fracture and other problems. Processing factories need to stop frequently to change wires and calibrate parameters, which seriously affects the production rhythm and processing stability.

Ultra-high tensile strength

The tensile strength of molybdenum wire far exceeds that of brass wire, which can withstand the high tension tension setting of the equipment and maximize the suppression of vibration, offset and hysteresis deformation of the wire in the high-speed cutting process. In the processing of thick workpieces, high elevation, complex corners and shaped structures, there will be no problems such as collapsed edges, large taper and dimensional drift. With the molybdenum wire system of the cutting equipment, it can stably achieve ±4μm extreme precision, Ra≤0.8μm surface finish, and three cuts can achieve the quality surface effect within Ra1.0μm, which can fully meet the tolerance requirements of high-end molds and precision parts.

Reciprocal reuse

The high cost of consumables is the core problem that has long plagued European and American fast-wire processing factories, and the root of this problem lies in the use of electrode wires. Long-term mass production process, the purchase cost of brass wire, wire replacement downtime costs, rework costs superimposed on the loss, significantly compressing the factory's profit margin. Especially for medium and large-scale mass production factories, consumable expenses are a huge fixed expense.

Molybdenum wire is perfectly adapted to Asia's mainstream reciprocating fast-wire system, relying on its own high-strength, abrasion-resistant, anti-deformation characteristics, a single roll of molybdenum wire can be recycled for 30-60 hours, reuse performance of the full, completely subverted the pattern of one-time use of brass wire.

Low elongation and high rigidity

The thermal elongation of molybdenum wire is less than 2%, and it will hardly stretch and deform or sag under continuous high tension and high temperature working conditions. In long time batch processing, the wire tension is always kept uniform, there will be no problem of high precision in the early stage and large deviation in the later stage, which effectively improves the processing yield of complex workpieces and batch workpieces, reduces rework loss, and significantly improves the overall production efficiency.

Molybdenum wire vs. brass wire: EDM Cutting

For the vast majority of processing enterprises, brass wire Fast cutting wire pain points have always been difficult to avoid: high cost of consumables for single-use electrode wire, high speed cutting is very easy to break the wire, long time processing accuracy drift is serious, and frequent shutdowns to change the wire leading to large capacity loss. Many European and American processing plants are limited by traditional knowledge, has not tried the molybdenum wire process, missed the core program to reduce costs and increase efficiency, improve product yields.

In fact, purely competing with the instantaneous cutting speed, brass wire has a certain advantage, but comprehensive continuous processing stability, dimensional accuracy, surface quality, comprehensive production costs of the four core dimensions, molybdenum wire is the optimal solution for 98% of the precision fast-wire processing scenarios.

Comparison of core parameters

Tensile strength: molybdenum wire 900-1724MPa, much higher than brass wire 400-800MPa, resistance to breakage, vibration resistance is stronger.

Melting temperature: molybdenum wire 2620℃, brass wire about 900℃, molybdenum wire high temperature corrosion resistance crushed brass wire.

Reuse performance: molybdenum wire can be recycled, brass wire is a one-time consumable.

Processing accuracy: molybdenum wire rigidity, deformation is small, can realize ± 4μm high precision machining; brass wire is easy to shift, precision stability is weak

Comprehensive cost: molybdenum wire initial unit price is high, but the reusability is very strong, the cost of a single piece of processing is much lower than brass wire

Cutting speed: pure instantaneous speed brass wire is slightly better; molybdenum wire speed is a little slower but no downtime loss, higher overall capacity

Molybdenum wire application scenarios

Scenario for brass wire: only suitable for low-precision, simple structure, large-volume high-speed rough machining of common materials, suitable for traditional unidirectional wire-walking equipment in Europe and the United States, with the advantages of instantaneous cutting speed, low entry cost of the equipment, but the long-term cost of consumables and operation and maintenance is extremely high.

Molybdenum wire applicable scenarios: suitable for mold steel, titanium alloy, high temperature alloys and other hard materials, thick materials, high elevation, complex shaped, high-precision tolerance workpieces, as well as medical, aerospace, military and other non-copper and zinc contamination requirements of the high-end scenarios. The main stable and high speed, zero frequent stoppage, high precision, low comprehensive cost, is the first choice of modern refinement of Fast cutting wire processing.

Fast cutting wire EDM molybdenum wire selection guide

Molybdenum wire selection directly determines the processing speed, accuracy and service life, combined with the industry's common standards and equipment parameters, to organize a set of suitable for most of the fast cutting wire scenarios selection program:

Specification diameter: 0.18mm is the industry's common standard, balanced speed, accuracy and stability, suitable for 90% of the conventional processing; 0.10-0.15mm suitable for micro-fine structure, sharp finishing; 0.20mm and above is suitable for thick materials, large margin roughing.

Purity grade: 99.95% high purity molybdenum wire is preferred, with uniform conductivity, stable performance, and no impurities leading to wire breakage and abnormal discharge problems, which is the best grade for EDM.

Performance parameters: Fast cutting wire working conditions need to meet the tensile strength ≥ 900MPa, elongation <3%, to protect the stability of high tension cutting.

Surface technology: ordinary black drawn molybdenum wire is cost-effective and suitable for conventional processing; polished white molybdenum wire has a cleaner surface, better chip removal and lower short-circuit rate, which is suitable for high-precision and high-surface requirements of workpieces.

Equipment adaptability: Exclusively adapted to reciprocating wire EDM equipment, with patented wire guide, drive system can maximize the performance advantages.

Molybdenum wire fast cutting wire common faults and solutions.

Molybdenum wire stability is far better than brass wire, but by the debugging of equipment, operation and maintenance, parameter settings, there will still be a small number of failures, the following industry high-frequency problems and landing solutions:

Frequent wire: mostly due to improper tension, guide wheel wear, pulse parameters are too high, chip removal is not smooth. Solution: calibrate the wire tension, regularly replace and clean the guide wheel and conductive block, optimize the pulse current and interval, adjust the position of the nozzle to protect the effect of liquid flushing.

Slow cutting speed: mostly caused by parameter mismatch, insufficient flushing liquid and uneven quality of wire. Optimize the pulse width and voltage parameters, clean the dielectric fluid, replace the high uniformity and high purity molybdenum wire, and moderately adjust the wire speed.

Poor surface finish, precision drift: mostly due to wire vibration, wire guide parts dirty, only a single knife roughing. Appropriate increase in tension to reduce vibration, the use of multi-cutter finishing process, regular cleaning equipment wire guide system and dielectric fluid.

Short wire life, fast wear: high energy parameters, insufficient cooling, low wire purity is the core reason. The processing parameters can be balanced, the cooling cycle of the equipment can be guaranteed, and the molybdenum wire can be replaced with high-purity EDM-specific wire.

Application of Refractory Molybdenum Wires

Most processors only know molybdenum wire as a special consumable for EDM, but in fact molybdenum wire is a high-performance refractory metal wire at the heart of the industrial sector. With a high melting point of 2620°C, high tensile strength, low coefficient of thermal expansion, stable electrical and thermal conductivity and resistance to high and low temperatures, corrosion resistance, molybdenum wire can be adapted to various types of extremely complex industrial conditions.

Lighting industry

Molybdenum wire is the core specialty wire in the lighting industry, mainly used for filament support, hooks and internal lead structures of incandescent, halogen and high-pressure gas discharge lamps. When lamps work at high temperatures for long periods of time, ordinary metal wires tend to fuse and deform, while molybdenum wires can significantly improve the service life and operational stability of lamps.

Electronics and semiconductor manufacturing

In the field of electronics and semiconductors, molybdenum wires are widely used in vacuum tubes and electron tubes to support the grids and positioning components by virtue of their high rigidity, zero deformation, and high vacuum stability, which ensures that the electronic devices do not shift or fail in the long term.

Ultra-fine high-purity molybdenum wire can be used in semiconductors, integrated circuits, precision bonding wires and micro-pitch conductive connections, to meet the semiconductor industry's high clean and stable production standards.

High-temperature industrial furnace

Industrial vacuum furnaces, inert atmosphere furnaces and other high-temperature equipment operating temperature up to 2000 ℃ or more, conventional metal materials can not be adapted. At the same time, molybdenum wire has excellent corrosion resistance to molten corrosion, can withstand the strong corrosive environment of molten glass and ceramic sintering, and is widely used in glass smelting, ceramic heat treatment and powder metallurgy equipment, effectively avoiding high temperature corrosion, structural aging, equipment collapse and other failures.

Aerospace and Defense Industry

Molybdenum wire can be used for aircraft windshield de-icing heating components, aviation engine temperature sensors, thermocouples temperature measurement wire, but also as satellites, missiles, turbine equipment load-bearing structural wire, can maintain the size and performance stability under extreme working conditions, to ensure the reliable operation of military aviation equipment.

Thermal spraying and surface coating industry

Molybdenum wire is the core raw material for the industrial thermal spraying process and can be used for flame spraying and plasma spraying. Through the high-temperature melt spraying process, a dense protective coating can be formed on the surface of mechanical parts.

Conclusion

Throughout the development of the global EDM industry, the dominant market position of brass wire stems from the inertia of traditional equipment, rather than performance advantages. The value of molybdenum wire is continuously amplified under the industry trend of high precision, low cost and stabilized production.

As a specialized manufacturer focusing on high purity Electro Discharge Machining (EDM) molybdenum wires and industrial refractory metal materials, COMBAT is committed to providing quality molybdenum wires with consistent quality, high strength and long service life. Contact us today for free technical guidance and a customized quote.

Frequently Asked Questions FAQ

Q1: Which is better, EDM molybdenum wire or brass wire?

A1: There is no absolute advantage or disadvantage, the scenario determines the choice. Brass wire instantaneous cutting speed is faster, suitable for low-precision simple rough machining; molybdenum wire comprehensive stability, precision, cost-effective crushed brass wire, suitable for 98% of the industrial precision fast-cutting wire processing scenarios, is the first choice for mass production and high-precision machining.

Q2：Why can molybdenum wire be reused, but not brass wire?

A2：Molybdenum wire melting point, tensile strength, structural stability is very strong, high-speed reciprocating cutting wear and tear slow, not easy to deformation and fracture, can be recycled for a long time; brass wire resistance to high temperatures, tensile performance is poor, a single go wire wear and tear serious, can not be reused.

Q3：How much cost can be saved by using molybdenum wire?

A3：Compared with the traditional brass wire equipment, molybdenum wire reciprocating process can directly reduce 70% of the cost of consumables for electrode wires, and at the same time, reduce the broken wire downtime, rework loss, the overall production cost reduction is significant.

Q4：What is the most suitable size of molybdenum wire for general-purpose Fast cutting wire processing?

A4：0.18mm molybdenum wire is the industry's common gold standard, taking into account the cutting speed, machining accuracy and stability, suitable for most of the conventional fast-wire processing conditions.
