Pure molybdenum rods and TZM molybdenum alloy rods are the two most commonly used molybdenum-based high-temperature resistant materials in the fields of high-temperature vacuum furnaces, semiconductors, aerospace, and thermal processing molds. Many engineering procurement, process engineers in the selection of easy to step on the pit: either blindly choose the higher price of TZM molybdenum alloy rods resulting in cost waste, or misuse of pure molybdenum rods resulting in high temperature load deformation, sagging, creep failure, equipment downtime. This paper will comprehensively compare pure molybdenum rod and TZM molybdenum alloy rod, and provide the selection standard that can be directly landed.

What is Pure Molybdenum Rod?

Pure molybdenum rod is a cylindrical solid high-temperature resistant profile made of high-purity metal molybdenum. It is the most basic and versatile molybdenum product in industrial applications. Industry general purity standard ≥ 99.95, high-end operating conditions can reach 99.99 and above, containing only trace carbon, oxygen and other impurities, no other alloy elements doped. As a typical refractory metal, molybdenum has silver-gray metallic luster and density of 10.22-10.28g/cm³. With an ultra-high melting point of about 2620 ℃, molybdenum has become the core material under high temperature conditions.

The core advantages of pure molybdenum rods focus on purity, thermal conductivity and formability. Its room temperature thermal conductivity can reach 138 W/m · K, and its electrical conductivity is excellent in refractory metals, which can meet the requirements of precision thermal conductivity and electrical conductivity. At the same time, the pure molybdenum rod has good toughness and good ductility, and can be easily processed into filaments, flakes and various complex special-shaped structures, and the secondary processing performance is excellent. In addition, the thermal expansion coefficient of the material is extremely low, the dimensional stability is good in high temperature environment, and the vapor pressure in vacuum environment is extremely low, so it is not easy to produce pollution.

However, the pure molybdenum rod has obvious short board, and the comprehensive mechanical properties at high temperature are limited. When the ambient temperature exceeds 1200 ℃, the strength of the pure molybdenum rod will decrease rapidly, and the creep resistance is general. When it is subjected to continuous mechanical load for a long time, it is prone to problems such as sagging, deformation, size deviation, etc., and cannot adapt to high load and high temperature conditions.

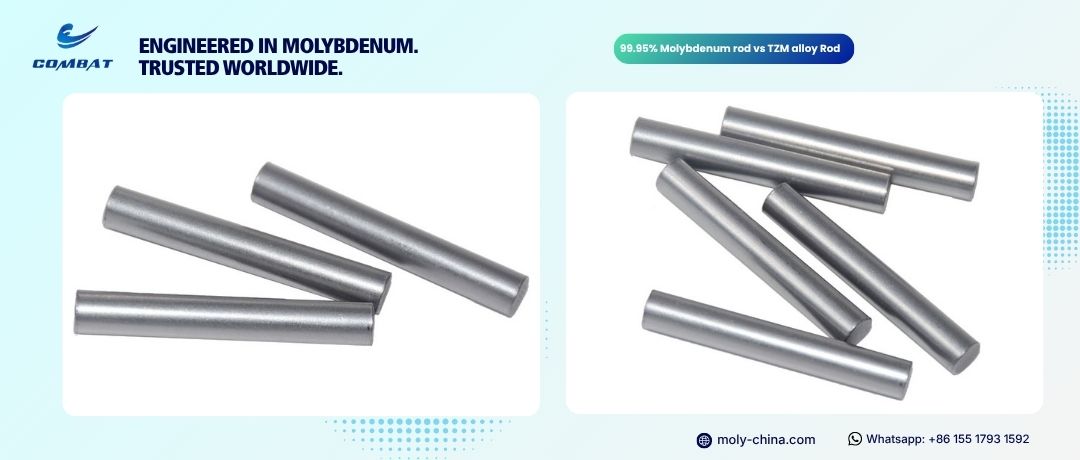

What is TZM Alloy Rod?

TZM molybdenum alloy rod (titanium-zirconium-molybdenum alloy rod) is a particle-enhanced molybdenum alloy profile made of precise addition of trace titanium, zirconium and carbon elements in a high-purity molybdenum matrix, and is also the most mature industrial application and the best comprehensive high-temperature mechanical properties of the modified molybdenum material. It is specifically for pure molybdenum rod high temperature mechanics short board research and development of upgraded materials, the core positioning is to solve the pure molybdenum rod high temperature softening, creep sagging, insufficient carrying capacity of the industry pain points.

Compared with pure molybdenum rods, the core differentiation characteristics of TZM molybdenum alloy rods focus on high temperature structural stability and carrying capacity. Relying on the fine carbide precipitated by titanium and zirconium elements to pin the grain boundary, TZM molybdenum alloy rod completely makes up for the performance short board of pure molybdenum rod, and is suitable for all kinds of severe working conditions of high temperature, heavy load and long-term continuous service.

Compared with pure molybdenum rod, the core advantage of TZM molybdenum alloy rod is reflected in the high temperature performance. Its recrystallization temperature is 250-330 ℃ higher than that of pure molybdenum rod, and can reach more than 1400 ℃, which can effectively delay the problem of high temperature softening and grain coarsening. In the high temperature environment above 1300 ℃, the tensile strength and yield strength of TZM molybdenum alloy rod are about 2 times that of pure molybdenum rod, and the creep resistance is improved several times or even more than ten times. The structure is stable and not easy to deform under long-term high temperature and continuous load. At the same time, its welding performance is better than pure molybdenum rod, more suitable for the production of complex welding assembly components.

Of course, TZM molybdenum alloy rods also have certain disadvantages. After alloy modification, the ductility and formability of the material have decreased, the thermal conductivity and electrical conductivity are slightly lower than those of pure molybdenum rods, and the production process is more complex and costly, which is not suitable for all conventional conditions.

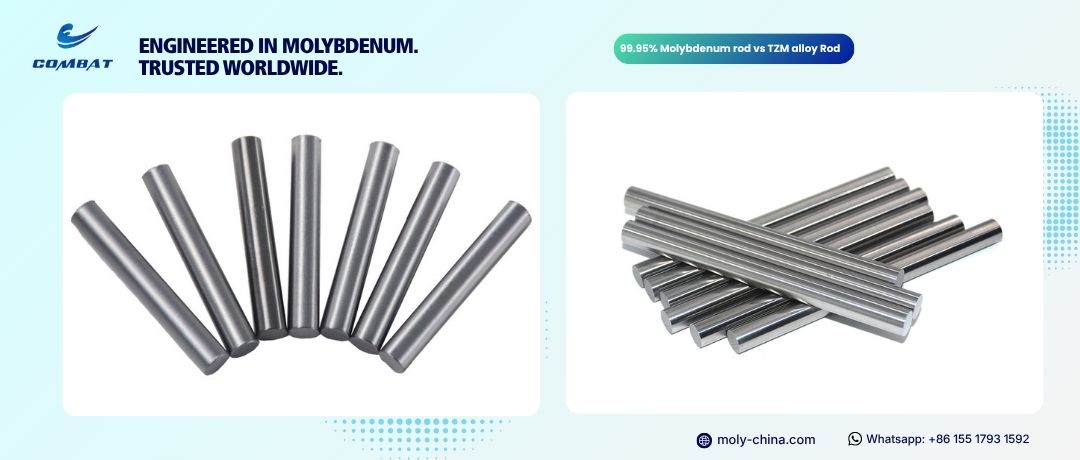

Pure Molybdenum Rod VS TZM Molybdenum Alloy Rod: Properties Differences

The basic physical properties of pure molybdenum rod and TZM molybdenum alloy rod are similar, but the microstructure difference brought about by alloy modification makes the two form a significant gap in mechanical properties, high temperature stability and use suitability. The following is a detailed comparison of the differences between the core parameters and the actual application.

Comparison of basic physical parameters

The melting points of pure molybdenum rod and TZM molybdenum alloy rod are almost exactly the same, 2620-2623 ℃, and the density is basically the same. The density of pure molybdenum rod is 10.22-10.28g/cm, and that of TZM molybdenum alloy rod is about 10.22g/cm. The thermal expansion coefficient is at a very low level, and the stability performance in vacuum environment is similar.

The consistency of the basic parameters, so that both materials can be qualified for the basic use of ultra-high temperature environment, there will be no insufficient melting point, large thermal deformation of the basic problems, the core gap is reflected in the high temperature mechanical stability rather than the basic physical properties.

Mechanics and high temperature performance core gap

At room temperature, the strength of TZM molybdenum alloy rod is significantly higher, and the yield strength is ≥ 620MPa, which is much higher than that of pure molybdenum rod 280-550MPa. Under the high temperature environment, the gap is further widened, the strength of pure molybdenum rod above 1200 ℃ is rapidly attenuated, and plastic deformation is easy to occur, while the TZM molybdenum alloy rod can maintain high strength stably.

Creep resistance is the most critical point of distinction between the two. Pure molybdenum rod creep resistance is medium, long-term high temperature pressure will slowly deform, sag, TZM molybdenum alloy rod by virtue of carbide pin grain boundary structure, creep resistance greatly improved, is the first choice of high temperature long-term service conditions.

The difference in recrystallization temperature directly determines the material's ability to withstand high temperature softening. The recrystallization temperature of pure molybdenum rod is only 1100-1200 ℃, and it quickly softens and fails after overtemperature. The recrystallization temperature of TZM molybdenum alloy rod is raised to above 1400 ℃, and the ability of high temperature softening and grain aging resistance is stronger.

Process and performance differences

In terms of forming processing, pure molybdenum rods have excellent ductility and plasticity, and can be easily drawn into filaments, thin-walled components and complex special-shaped parts, with high processing fault tolerance rate. TZM molybdenum alloy rods have high hardness and poor plasticity, and are easy to crack in large deformation processing, making forming more difficult.

In terms of thermal conductivity, pure molybdenum rod has obvious advantages. The thermal conductivity at room temperature is 138 W/m K, which is better than 126 W/m K of TZM. The electrical conductivity is lower, and it is more suitable for thermal conductivity, electrical conductivity and high purity pollution-free scenes.

The oxidation resistance of the two is the same, both in the air environment above 400 ℃ rapid oxidation peeling, high temperature use must be matched with vacuum, inert gas, hydrogen and other protective atmosphere, otherwise it will quickly fail.

Pure molybdenum rod vs. TZM molybdenum alloy rod: Cost Price Variance

Pure molybdenum rod process is simple, single raw material, high yield, is economical high temperature resistant material. TZM molybdenum alloy rods require precise proportioning of alloying elements, strict control of sintering and thermal processing, longer production cycle and more difficult processing, the price of TZM molybdenum alloy rods is usually 1.3-2.5 times the price of pure molybdenum rods.

Pure Molybdenum Rods VS TZM Molybdenum Alloy Rods: Which Performs Better at High Temperatures?

In the high temperature environment of no load and pure insulation, the pure molybdenum rod and TZM molybdenum alloy rod can be used normally, and the performance difference is not obvious. However, the vast majority of industrial high-temperature equipment has continuous mechanical load, repeated thermal cycling, long-term service conditions, at this time the performance gap between the two will be completely highlighted.

In the 700-1200 ℃ low temperature and high temperature range, light load conditions, pure molybdenum rod performance is completely sufficient, faster heat conduction, lower cost, more convenient processing, cost-effective advantages.

Under the severe conditions of high temperature above 1200 ℃, continuous pressure and long-term service, the pure molybdenum rod will soften obviously, creep sag and size offset, resulting in the decrease of equipment accuracy and component failure. The TZM molybdenum alloy rod can stably maintain the structural strength, resist thermal deformation and grain aging, and greatly extend the service life.

To put it simply: pure molybdenum rod is better than heat conduction, high purity, easy processing, low cost, suitable for high temperature working conditions without heavy load; TZM molybdenum alloy rod is better than high temperature strength, creep resistance and dimensional stability, suitable for heavy load, long-term, high-precision high-temperature structural working conditions.

Pure Molybdenum Rods VS TZM Molybdenum Alloy Rods: Application Comparison

Based on performance differences, the industrial application scenarios of pure molybdenum rods and TZM molybdenum alloy rods have clear boundaries, and the selection of different industries and different equipment components has clear rules, which can be directly compared with reference.

Pure molybdenum alloy rod is preferred

Vacuum high-temperature furnace light load components: heating elements, heat insulation screens, simple furnace supports, material boats and other components that do not have continuous heavy load and only need high temperature and heat conduction. Pure molybdenum rods can fully meet the use requirements and are more cost-effective.

Semiconductor and electronic high purity scene: sputtering target, evaporation source, substrate, electronic anode, etc., the material purity requirements are extremely high, pure molybdenum rod without alloy doping, can eliminate impurity pollution, while excellent electrical conductivity and thermal conductivity to adapt to precision electronic conditions. Molybdenum rods are widely used in semiconductor and electronic high purity scenarios.

Glass metallurgy industry: glass melting electrode is the core application scenario of pure molybdenum rod, relying on its high conductivity, high thermal conductivity, corrosion resistance, can be stable to complete the glass melting operation.

Fine molding processing scene: working conditions that need to be drawn into molybdenum wires, filaments, thin-walled components and complex stamping parts. The high ductility of pure molybdenum rods can ensure the processing and molding effect and avoid cracking and fracture problems.

Medical and scientific research high purity scene: molybdenum rod in medical implant parts, precision scientific research experimental components manufacturing, relying on pure ultra-high purity, low pollution characteristics, to meet the stringent standards of clean use.

TZM molybdenum alloy bar is preferred

Heavy-duty structural parts of high-temperature furnace: furnace body support frame, transmission shaft, furnace frame, high-temperature zone fixed tooling and other components that bear long-term mechanical load. TZM molybdenum alloy rod is used in high-temperature furnace to effectively resist creep sagging and ensure long-term accuracy and stability of equipment.

Hot processing mold tooling: extrusion mold, forging mold, die-casting mold, hot runner nozzle, etc. The working conditions are both high temperature, high pressure and strong friction. The high strength, wear resistance and thermal deformation resistance of TZM molybdenum alloy can greatly improve the service life of the mold.

Aerospace and defense components: rocket nozzles, engine high temperature section structural parts, high-altitude heat-resistant load-bearing parts, relying on TZM excellent high temperature strength and structural stability, suitable for extreme harsh conditions.

Nuclear energy and high-end precision high-temperature components: reactor structural parts, control rod supporting hardware, X-ray tube rotating anode, etc., need long-term high temperature pressure, maintain structural integrity, TZM molybdenum alloy rods in nuclear energy components manufacturing is the best material choice.

Pure Molybdenum Rods VS TZM Molybdenum Alloy Rods: How to Choose Quickly?

Select pure molybdenum rod

1. The core requirements of working conditions are ultra-high purity and pollution-free, such as semiconductor, medical and precision scientific research scenarios;
2. High requirements for thermal conductivity and electrical conductivity, giving priority to ensuring heat transfer and electrical conductivity efficiency;
3. The need for secondary deep processing, drawing, stamping, forging for complex special-shaped components, filaments, thin-walled parts;
4. High temperature environment but small mechanical load, no long-term pressure demand, no creep deformation risk;
5. The project budget is limited, the pursuit of high cost performance, without the extreme high temperature mechanical properties.

Selection of TZM molybdenum alloy rod

1. The working temperature is ≥ 1200 ℃ for a long time, and the components need to continuously bear mechanical tension, pressure and torque;
2. The equipment requires high dimensional accuracy, and parts are not allowed to sag, deform, and deviate in size;
3. Components need long-term continuous service, frequent hot and cold cycles, high requirements for fatigue resistance and creep resistance;
4. The application scenarios for hot mold, aerospace, nuclear energy, heavy-duty high-temperature furnace structure and other high-end harsh fields;
5. An accept a certain cost premium, priority to ensure equipment stability, service life, low failure rate.

How Are Molybdenum Rods Produced And Machined? Manufacturer's Perspective

• Production process: high purity molybdenum powder pressed into billets, high temperature sintering molding, and then through rotary forging, forging, drawing, precision machining and other processes shaping. Pure molybdenum rod with high purity molybdenum powder as raw material, simple process, low quality control difficulty, good batch stability. TZM molybdenum alloy rods require precise proportioning of a variety of alloy powders to ensure uniform dispersion of components, more stringent control of sintering and thermal processing parameters, and extremely low process tolerance. Full compliance with ASTM B387 international industry standards.
• Processing performance: pure molybdenum bar room temperature plasticity is good, not easy to crack, machining, bending, drawing difficulty is low, suitable for all kinds of fine processing. TZM molybdenum alloy bar has high hardness, fast work hardening, large deformation processing is easy to crack, must strictly control the amount of single deformation, if necessary, with the intermediate annealing process.
• Surface treatment: two kinds of molybdenum rods can provide sintering original surface, pickling cleaning, fine grinding, polishing, turning and other surface state. High purity and precision working conditions give priority to fine grinding and polishing surface, which can effectively reduce surface impurities and improve vacuum stability.
• General use taboo: pure molybdenum rod and TZM molybdenum alloy rod can not be used for a long time in the air environment above 400 ℃, and will quickly oxidize and fail. All high-temperature service scenarios must be equipped with a vacuum, hydrogen or inert gas protective atmosphere.

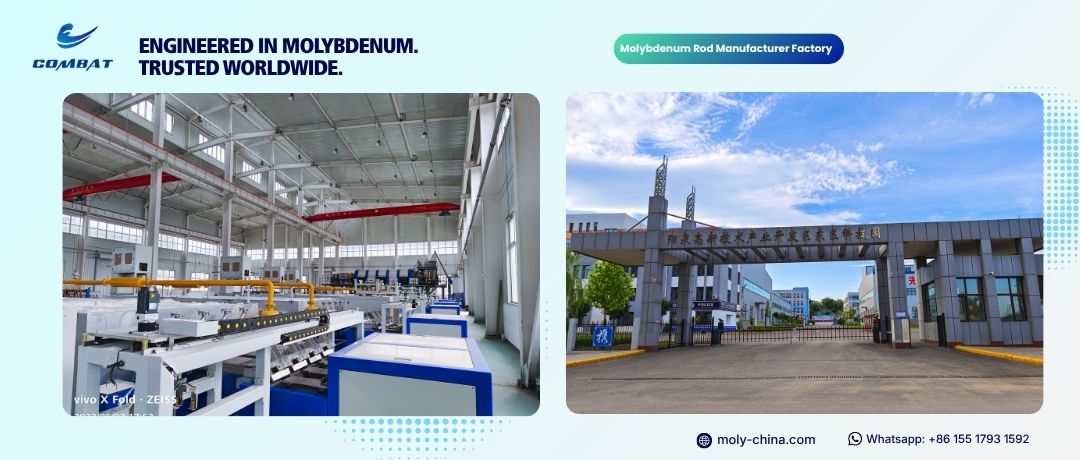

How to Choose a Reliable Molybdenum Rod Manufacturer?

After the material selection is in place, the quality of the molybdenum rod manufacturer directly determines the consistency, stability and service life of the finished product.

• Qualification and standard compliance: reliable molybdenum rod manufacturers strictly follow ASTM B387 standard products, pure molybdenum rod, TZM molybdenum alloy rod classification is clear, can provide complete material certification, mechanical performance test report, chemical composition MTR report, batch traceability.
• Production capacity: Preference is given to molybdenum rod manufacturers with full process capacity of powder metallurgy, vacuum sintering, hot forging and precision finishing, rather than mere middlemen. For example, the independent production of molybdenum rod source factory can strictly control the purity, density and grain structure of the material, and eliminate the problems of pores, inclusions and uneven composition.
• Customization and quality control capability: high-quality molybdenum rod manufacturers can support multi-specification diameter, length and tolerance customization, adapt to different surface processes, and have perfect non-destructive testing, purity testing and high-temperature performance testing capabilities to ensure the use requirements of high-end working conditions.
• Technical service and delivery: The professional molybdenum rod source factory can provide targeted selection suggestions, recommend pure molybdenum rods or TZM molybdenum alloy rods according to the customer's working conditions, while ensuring stable delivery and perfect after-sales, effectively avoiding project delays, improper material adaptation and other problems.

Common FAQ About Molybdenum Metal Materials

Q1: TZM molybdenum alloy rod must be better than pure molybdenum rod?

It's not. The two have no absolute advantages and disadvantages. TZM has stronger high temperature mechanical properties, but it has high price, poor thermal conductivity, and is not easy to process; pure molybdenum rods have high cost performance, high purity, good processability, and excellent thermal conductivity. They are more suitable than TZM under light load and high purity conditions.

Q2: Why is the price of TZM molybdenum alloy rod more expensive than pure molybdenum rod?

TZM requires precise alloy ratio, rigorous sintering and thermal processing process, longer production cycle, lower yield, and difficult processing, subsequent finishing costs are higher, the overall cost is much higher than pure molybdenum rods.

Q3: Can TZM molybdenum alloy rod directly replace all pure molybdenum rod scenes?

You can't. In the semiconductor high purity, precision thermal conductivity, fine molding, low-cost general-purpose scenarios, TZM alloy impurities, low thermal conductivity, poor formability, but will cause performance defects and cost waste.

Q4: Should pure molybdenum rod or TZM molybdenum alloy rod be selected for vacuum furnace parts?

Pure molybdenum rod shall be selected for light load heat shield, heating element and simple support; TZM molybdenum alloy rod shall be selected for heavy load support frame, transmission shaft and long-term high temperature pressure-bearing structural parts to avoid creep deformation failure.

Q5: Can molybdenum rods be used at high temperatures in the air?

You can't. Pure molybdenum rod and TZM molybdenum alloy rod in the air above 400 ℃ will be rapidly oxidized skin, performance attenuation, high temperature use must rely on vacuum, inert gas or hydrogen protective atmosphere.

Conclusion

If your working condition is based on high purity pollution-free, efficient thermal conductivity, fine processing, low cost, and the high temperature mechanical load is small, pure molybdenum rod is the best cost-effective choice. If your working conditions have high temperature above 1200 ℃, continuous mechanical load, long-term service and high-precision dimensional requirements, and you need to resist creep deformation and high temperature softening, the performance advantages of TZM molybdenum alloy rods are irreplaceable. COMBAT is a reliable source factory in China, with multiple factory bases. With first-class manufacturing experience and quality control, we continue to provide tungsten and molybdenum products to customers all over the world. Contact us for more up-to-date information on molybdenum bar prices!
