The precision, efficiency and stability of EDM machining depend on the quality of electrode wire. In the mold manufacturing, aerospace, medical equipment, precision electronics and other high-end processing fields, EDM precision molybdenum wire with excellent high temperature resistance, high strength, recycling characteristics, has become the core of high-speed wire EDM equipment consumables. This article will provide a complete precision molybdenum wire procurement guide to help the factory accurately select, reduce cost and increase efficiency, and improve the workpiece yield.

What is EDM Precision Molybdenum Wire?

EDM precision molybdenum wire is a kind of ultra-fine precision electrode wire processed with high purity molybdenum metal as the core raw material. It belongs to refractory metal precision consumables and is specially adapted to EDM wire cutting equipment.

Different from ordinary industrial molybdenum wire,"precision grade" molybdenum wire has strict production standards, focusing on three dimensions: size accuracy, surface state and material purity.  It is not an ordinary roughing consumable, but a special material tailored for high-precision, high-stability, high-load EDM machining.

From the point of view of material standards, the purity of high-quality EDM precision molybdenum wire is generally ≥ 99.95%, and the impurity content is extremely low.  In some high-end scenarios, trace amounts of titanium, zirconium, lanthanum and other alloy elements will be added to improve the toughness and fatigue resistance of molybdenum wire without affecting the conductivity and heat resistance, and adapt to long-term reciprocating cutting conditions.

From the perspective of precision core standards, qualified precision molybdenum wire must have two characteristics.  First, the surface is clean without oxidation layer, smooth without burrs, which can ensure uniform and stable spark discharge.  Second, the size tolerance is extremely small, the diameter of the whole coil is uniform, and the cutting error caused by the deviation of the wire diameter is completely avoided.

Its conventional machining diameter range is 0.02mm-0.2mm, covering micro-precision machining, conventional finishing, thick rough machining and other scenes. It is the most versatile and cost-effective electrode consumable in the current high-speed wire EDM system.

EDM Precision Molybdenum Wire Performance Advantages

The reason why precision molybdenum wire can replace brass wire as the mainstream choice for high-end EDM machining lies in its unique physical and mechanical properties, perfect for extreme machining environments of EDM. These core performances not only determine the processing accuracy and efficiency, but also directly affect the equipment operation rate and the service life of consumables, and are also the core reference basis for procurement selection.

1. Super high temperature resistance

The melting point of molybdenum metal is as high as 2620 ° C, which is much higher than the melting point of brass wire 900 - 930 ° C.  In EDM process, high frequency EDM will produce instantaneous high temperature, common brass wire is easy to appear melting, wear, deformation problems.

 Precision molybdenum wire can withstand high temperature discharge for a long time, without local ablation, wire diameter thinning, bending deformation and so on.  Maintain stable thread shape throughout the process to ensure cutting consistency from the root.

2. Ultra high tensile strength

The tensile strength of high-quality precision molybdenum wire can be stably maintained at more than 1100 MPa, almost twice that of brass wire.  The high strength characteristics allow the molybdenum wire to withstand high tension operation of the equipment without problems such as stretching, sagging, and shaking.

Whether it is thick material deep processing, carbide cutting, or long-term unattended continuous processing, molybdenum wire can maintain a tight and stable state, completely solve the soft electrode wire easy to break, easy to offset pain points.

3. High purity stable conductivity

More than 99.95% of high purity material, so that molybdenum wire has stable and balanced electrical conductivity.  Impurities are very few, and there will be no local resistance abnormality and discharge disorder. Uniform spark discharge effect can keep the material removal rate consistent all the time, effectively reduce defects such as scratches, bumps and size deviation of workpieces, and improve the overall machining quality of workpieces.

4. Low elongation, corrosion resistance

Precision molybdenum wire elongation is very low, high tension operation will not stretch deformation, can maintain accurate cutting track for a long time.  At the same time, it has excellent corrosion resistance, can adapt to various processing fluid conditions, and is not easy to be corroded and oxidized.

Different from disposable brass wire, molybdenum wire support reciprocating cycle use, adapt to fast wire closed-loop system, greatly reduce the cost of single workpiece consumables.

How to Improve EDM Machining Accuracy and Efficiency?

EDM machining core accuracy pain points, mostly from the electrode wire instability, easy to wear, easy to offset.  Precision molybdenum wire through its excellent comprehensive performance, from the source of processing to solve precision error, low efficiency, unstable conditions and other problems.
Read:

1. Stable tension control

The tension of common electrode wire is insufficient, and it is easy to cause wire jitter, droop, bending and other problems during processing, resulting in non-straightness of workpiece sidewall, corner distortion and size deviation.

 Precision molybdenum wire high strength, low elongation characteristics, can maintain constant tension for a long time, the wire is always straight and rigid.  In deep groove, narrow slit, complex 3D contour and sharp corner cutting scenes, it can perfectly copy the design drawing size, and the geometric tolerance control is more accurate.

2. Constant wire diameter and spark gap

The accuracy of EDM is highly dependent on a stable spark gap.  Brass wire wear speed at high temperature, wire diameter continues to become smaller, will lead to constant fluctuations in spark gap, and finally appear workpiece taper, over-cutting, size instability and other problems.

Precision molybdenum wire high temperature resistance, ablation resistance, processing wire diameter almost no change, spark gap is always constant.  Uniform material removal, smoother workpiece sidewall, greatly reduced taper error, can meet the needs of multiple trimming finishing.

3. Reduce equipment downtime

Frequent wire breakage is the core culprit affecting EDM machining efficiency and accuracy.  Every time the broken wire is restarted, alignment deviation and track deviation will occur, resulting in uneven precision of workpieces of the same batch, greatly improving the scrap rate.

Precision molybdenum wire extremely low wire breakage rate, support long-term continuous unmanned processing, no need to frequent downtime threading, alignment.  The machining standard of the whole batch of workpieces is unified, the size consistency is greatly improved, and it is suitable for mass production processing.

4. Adapting to fast wire closed-loop system

Precision molybdenum wire is specially designed for reciprocating high-speed wire EDM equipment, which can be recycled and reused without single feed consumption like brass wire.  Under reasonable parameter setting, the cutting efficiency of molybdenum wire can reach 8 times of that of traditional technology.

High-speed rough machining and precision finishing can not only meet the needs of factory mass production and efficiency improvement, but also handle the processing of high-precision special-shaped parts and micro-parts to meet the production needs of multiple scenarios.

EDM Molybdenum Wire VS Brass Wire：Performance Comparison

A lot of molybdenum wire procurement entangled in molybdenum wire and brass wire selection, the core is not clear about the two adaptation scenarios.  The following table compares the two mainstream electrode wires from the processing core dimension to facilitate the rapid matching requirements of the factory.

EDM Molybdenum Wire Diameter Selection Guide

Molybdenum wire diameter directly determines the cutting accuracy, cutting speed, minimum fillet and seam width.  Wrong size selection will directly lead to insufficient precision, frequent wire breakage, low efficiency and other problems.  The following is a standardized selection scheme common to the industry in 2026, which is suitable for most processing scenarios.

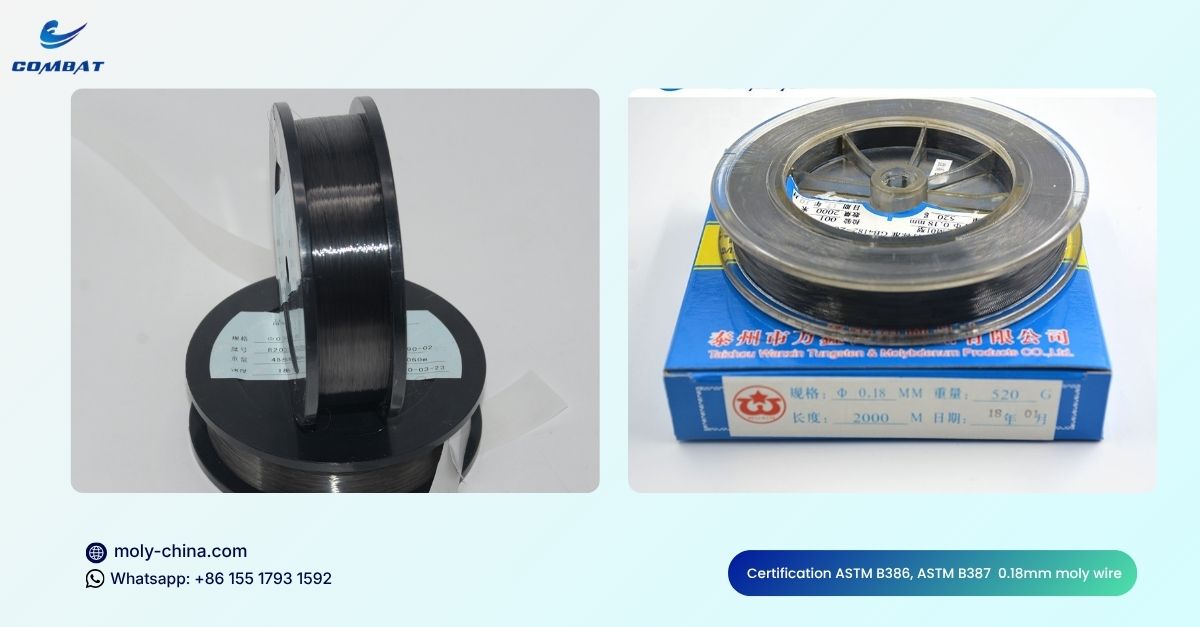

0.18mm molybdenum wire

0.18mm precision molybdenum wire is the most mainstream general specification of mold factory and precision machining factory at present, and the comprehensive performance is the most balanced.  The size gives consideration to cutting speed, wire strength, surface finish and size accuracy, and has extremely high fault tolerance.

It can adapt to most conventional machining scenarios, including rough and finish machining of molds, cutting of hard materials such as tool steel, titanium alloy, cemented carbide, etc. It has strong stability in mass production and is not easy to make errors in novice debugging. It is the preferred specification for factory standing.

0.10 - 0.16mm molybdenum wire

Small and medium diameter molybdenum wire, specially designed for precision detail machining.  Smaller wire diameter, narrower cutting gap width, smaller fillet and fine structure processing.

Suitable for thin-walled parts, narrow slots, precision sharp corners, complex special-shaped structure and other high-precision conditions, can effectively improve the workpiece size accuracy.  It should be noted that the EDM molybdenum wire toughness of this specification is slightly weaker, and the tension parameters of the equipment need to be optimized to avoid breaking the wire at high speed.

0.18 - 0.20mm molybdenum wire

Large diameter molybdenum wire structure strength is higher, impact resistance, tensile strength is stronger, can withstand higher equipment tension.  Suitable for high-speed rough machining scenarios of large thickness workpieces and high hardness materials.

Although the finishing surface effect is slightly inferior to that of fine diameter molybdenum wire, the processing stability and material removal efficiency are greatly improved, which is suitable for mass production roughing process and can effectively shorten the production cycle.

0.05 - 0.12mm molybdenum wire

Ultra-fine diameter EDM molybdenum wire belongs to high-end custom precision consumables, mainly used in medical parts, micro electronic components, precision instrument accessories and other ultra-machining scenarios.

It can realize micron-level fine cutting, controllable processing error, and can complete ultra-fine structure processing that cannot be realized by conventional wire. It has high requirements for equipment precision and parameter debugging.

7 Factors of Purchasing High Quality EDM Precision Molybdenum Wire

Molybdenum wire products on the market uneven quality, only by price selection is easy to step on pit.  If you want to buy precision molybdenum wire suitable for mass production, high precision and low loss, you need to strictly control the following 7 core procurement indicators.

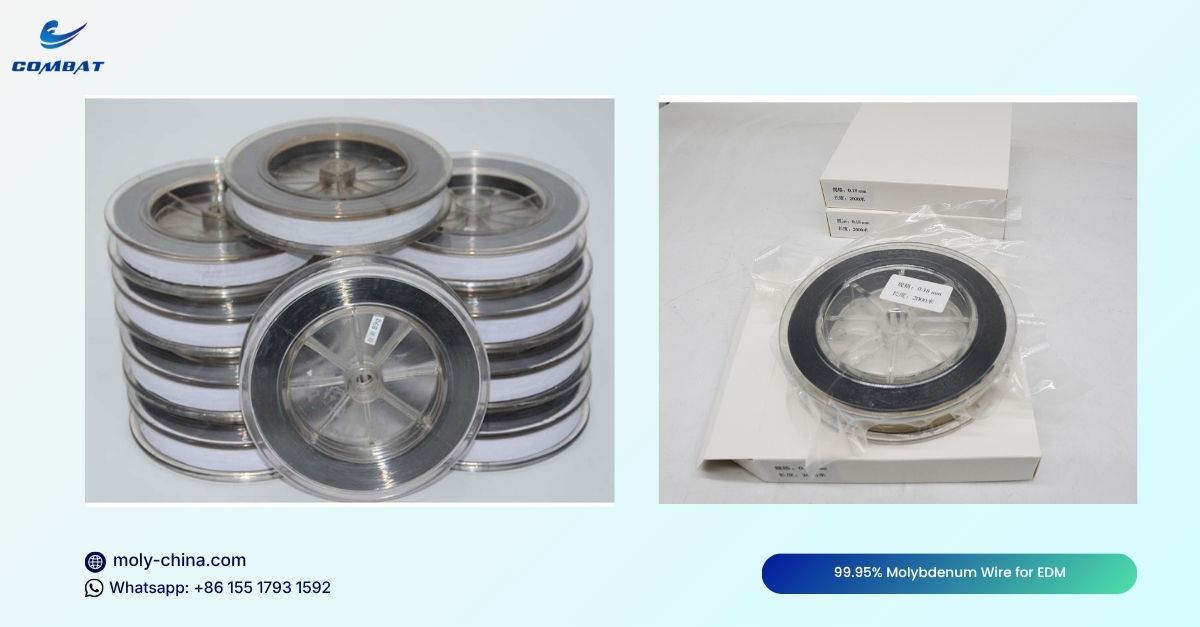

1 Material purity priority ≥99.95%

Purity is the basis for determining the conductivity stability and heat resistance of molybdenum wire.  Insufficient purity will lead to excessive impurities, uneven discharge, frequent arcing, wire burning, workpiece pitting and other problems.

Conventional precision machining must choose ≥99.95% high purity molybdenum wire, special high toughness requirements can choose lanthanum, zirconium modified alloy molybdenum wire, both strength and toughness.

2 Strictly control diameter tolerance accuracy

The thread diameter tolerance directly determines the consistency of the cut seam width.  The tolerance of high quality precision molybdenum wire can be controlled within ±0.003mm, and the diameter of the whole coil is uniform without fluctuation.  Poor molybdenum wire with excessive tolerance, large or small seam width in processing, will lead to workpiece size out of tolerance, rough side wall, unable to meet the needs of mass precision production.

3 Tensile strength not less than 1100MPa

Tensile strength is the core index of molybdenum wire breaking resistance and deformation resistance.  High strength molybdenum wire can adapt to high tension, high speed, long time continuous processing, stability full pull.  Low strength EDM molybdenum wire cost is lower, but it is easy to stretch deformation, shake fracture, frequent downtime for wire, but greatly increase the overall production cost.

4 Clean surface, no oxidation, no burrs

High quality precision molybdenum wire factory after polishing, oxidation treatment, smooth and clean surface, no oxide scale, no burrs, no oil.  Rough, oxidized and blackened molybdenum wire has poor discharge stability and fast wear rate, which not only affects the surface finish of the workpiece, but also shortens the service life of the wire.

5 Matching equipment working conditions, rejecting general mixing

Precision molybdenum wire is exclusively adapted to reciprocating high-speed wire EDM system, which cannot be adapted to continuous wire feeding equipment for brass wire.  Before purchasing, you must confirm your own equipment model to avoid problems such as broken wire, stuck wire and thread failure caused by mismatch of specifications.

At the same time, combined with the material, thickness and precision requirements of the workpiece, roughing selects large diameter and high strength, and finishing selects fine diameter and high precision.

6 Consider reuse life and long-term cost performance

The core advantage of molybdenum wire is that it can be recycled, and high-quality products can run stably for dozens of hours without replacement.  When purchasing, you can't just look at the unit price. You need to calculate the unit processing time and the cost of single workpiece consumables.

Low-cost inferior molybdenum wire single use cycle is short, loss is fast, frequent replacement of consumables, shutdown debugging, comprehensive cost is much higher than high-quality molybdenum wire.

7 Screening regular molybdenum wire suppliers

Quality suppliers can provide complete material reports, test certificates, size tolerance parameters, and support quality traceability.  Large-scale manufacturers have stronger batch stability, and there will be no problem of excessive batch performance difference.

Prefer to select suppliers who can provide sample testing and technical guidance, and then purchase in batches after adapting to their own processing conditions.

How to Select Reliable EDM Molybdenum Wire Suppliers?

Stable supply chain is the core guarantee of mass production. High-quality suppliers can continuously provide molybdenum wire products with uniform parameters and stable quality to reduce production hidden dangers.  Purchase screening can control the following standards one by one check.

Complete qualification: ISO9001 quality management system certification, COA component analysis report, SDS safety instructions, batch test data, and quality traceability.

• Transparent parameters: The purity, diameter tolerance, tensile strength, surface process and applicable equipment of the silk thread shall be clearly marked, and there shall be no fuzzy parameters or false publicity.
• Source production:prefer independent R & D manufacturers, rather than middlemen traders, mature production technology, can be customized non-standard specifications.
• Support sample: provide free sample machine test, can be measured broken wire rate, processing accuracy, surface effect, verify the product suitability.
• Professional packaging:vacuum sealed packaging, prevent molybdenum wire transport, storage process of oxidation, winding neatly without wire, wire problems.
• Perfect technical services:equipped with professional technical team, can provide type selection guidance, parameter debugging, troubleshooting and other after-sales support, to solve production problems.
• Stable reputation:good reputation in the industry, punctual delivery, no batch quality complaints, delayed delivery and other issues, suitable for long-term batch cooperation.

EDM Precision Molybdenum Wire Applications

Relying on the comprehensive advantages of high precision, high heat resistance and high reusability, precision molybdenum wire is widely used in various high-end precision machining industries, covering core fields such as mold manufacturing, high-end equipment, medical treatment, aerospace, etc.

• Mold manufacturing industry: plastic mold, metal mold, stamping mold, precision inserts, special-shaped mold core of rough and finish machining, is the core of mold WEDM consumables.
• High-end industrial manufacturing: cutting and processing of hard alloy, hardened steel and titanium alloy workpieces for aerospace, automobile parts and precision electronic accessories.
• Precision micro-machining: ultra-fine cutting of micro parts of medical devices, sensor parts and micro structures of precision instruments.
• Other industrial scenes: processing of industrial accessories such as heating elements of high temperature furnace, welding and spraying electrodes, lighting support wires, etc.

Frequently Asked Questions

Q1: How long is the service life of EDM precision molybdenum wire?

The service life is affected by wire diameter, processing material, equipment parameters and cutting thickness.  Standard 0.18mm high-purity molybdenum wire can work continuously for dozens of hours under conventional mass production conditions. Reasonable debugging parameters and standardized use can greatly prolong the service life.

Q2: Can EDM molybdenum wire be reused?

Very good. Precision molybdenum wire is specially designed for fast wire reciprocating cycle equipment, with excellent anti-fatigue, wear-resistant characteristics, can be recycled for many times, is the biggest cost advantage compared with disposable brass wire.

Q3: The core reason for frequent wire breakage of molybdenum wire during processing?

There are six main reasons: insufficient purity of silk thread, surface oxidation defect, mismatch of equipment tension parameters, excessive workpiece material, improper selection of wire diameter and turbid and unclean processing fluid.  and that problem of wire breakage can be quickly sol by checking one by one.

Q4: Is the higher the tensile strength, the better the performance of molybdenum wire?

However, this is not absolutely true.  Ultra high strength molybdenum wire is stiffer, but slightly less tough.  The model shall be selected according to the working condition balance. The rough machining and thick material shall be preferred to the high-strength model, and the precision micro-machining shall give consideration to the strength and toughness.

Q5: Does the molybdenum wire need to be replaced regularly? What is the replacement interval?

Need to be replaced regularly, no fixed cycle.  In case of obvious thinning of wire diameter, rough surface oxidation, frequent wire breakage, reduction of machining accuracy and other problems, timely replacement is required to avoid affecting workpiece quality and production efficiency.

Q6: Can Precision Molybdenum Wire Effectively Improve EDM Machining Accuracy?

Very good. Stable tension, constant wire diameter and uniform discharge effect can effectively reduce workpiece taper, deviation and surface defects, greatly improve dimensional accuracy and workpiece consistency, and are just needed consumables for precision EDM machining.

Conclusion

For the vast majority of factory routine mass production, mold processing, hard material cutting scenarios, 99.95% purity 0.18mm precision molybdenum wire is the most cost-effective and stability of the universal choice.

Need a customized molybdenum wire selection solution that fits your own EDM equipment and processing conditions? Welcome to consult COMBAT at any time. We can accurately match EDM precision molybdenum wire with high cost performance and high stability for you, helping the factory to reduce costs and increase efficiency and improve the yield of workpieces.
